Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires

1
MOQ
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
입구 직경: 38mm
배출구 직경: 6mm
전압: 380V
힘: 55W
치수: 2500*2000*2500mm
무게: 8000kg
캡스턴 지름: 1400mm
최대 입구 와이어: Ø38mm
최소 입구 와이어: Ø6mm
드로잉 속도: 30m/min
압축성: 25%
모터 파워: 75-110kw
전체 치수: 3×2.3×2.6M
핵심 구성요소: 모터
년도: 2022년
강조하다:

Long Service Life Wire Drawing Machine

,

Large Capacity Inverted Type Wire Drawing Machine

,

Continuous Working Vertical Drop Type Wire Drawing Machine
기본 정보
원래 장소: 중국 장쑤성
결제 및 배송 조건
제품 설명
Inverted/Vertical Drop Type Wire Drawing Machine
Product Overview

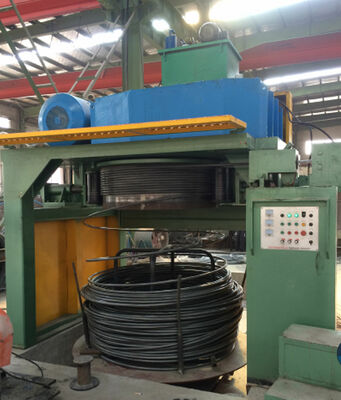

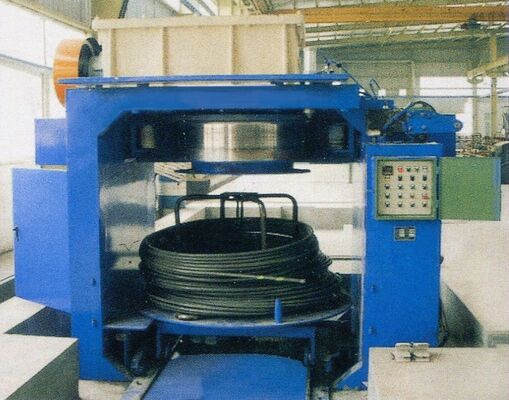

The inverted type wire drawing machine is engineered for large capacity and continuous operation. This robust system integrates both wire drawing and wire coiling processes, making it suitable for processing high, medium, and low-carbon steel wire, profile wire, stainless steel wire, and thick non-ferrous metal wire. The machine features a heavy-duty large recoiler system that facilitates easy wire unloading.
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 0 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 1 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 2 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 3
Product Specifications
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 4 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 5 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 6
Model Unit 1400 1200 1000 800
Capstan diameter mm 1400 1200 1000 800
Maximum diameter of inlet wire mm Ø38 Ø28 Ø20 Ø12
Minimum diameter of inlet wire mm Ø12 Ø12 Ø6 Ø6
Drawing speed M/min 30 40 50 70
Designed compressibility % 25 25 25 25
Motor power kw 75-110 55-75 45-55 30-37
Weight kg 10000 8000 6000 5000
Overall dimensions M 3×2.3×2.6 2.8×2.3×2.6 2.5×2×2.5 2.3×1.5×2.5
