Name: Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production
Brand: Wuxi Tripod Machinery Imp. & Exp. Co., Ltd.
Price: 2.00 USD
Availability: InStock

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

무게: 750kg

용량: 27-30pcs/분

치수: 1950x800x1550mm

모터 파워: 1.5kw

서보 모터 동력: 1kw

행거 크기 범위: 13" ~ 15" & 16" ~ 18"

와이어 직경 범위: Φ1.8 ~ 2.8mm

자동 검출: 비상 정지 센서

핵심 구성 요소: 모터

기계 유형: 자동 와이어 행거 기계

모델 QK-2(S): 700KGS, 1.95×0.8×1.55M

모델 QK-3: 720KGS, 2.0×0.8×1.75M

모델 QK-4: 1100KGS, 2.5×1.2×1.68M

모델 QK-2(L): 700KGS, 1.95×0.8×1.55M

모델 QK-3(L): 720KGS, 2.0×0.8×1.75M

강조하다:

Automatic Wire Hanger Machine

27-30pcs/min Hanger Making Machine

Galvanised Steel Wire Hanger Machine

기본 정보

원래 장소: 중국 장쑤성

브랜드 이름: DURA

결제 및 배송 조건

갤러리

Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production

제품 설명

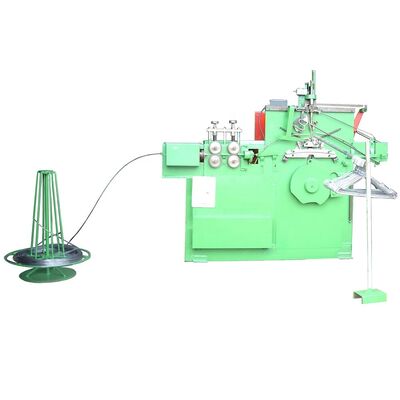

Automatic Laundry Galvanised Steel Wire Hanger Making Machine

Automatic Wire Hanger Making Machine

Key Features

Automatic hanger fabrication with high production capacity
Automatic detecting sensor for emergency stop functionality
Easy operation and simple maintenance requirements
Durable dies and lower operational costs

Machine Specifications

Model	QK-2(S)	QK-3	QK-4
Designed Capacity	27-30 pcs/min		20 pcs/min
Hanger Size Range	13"-15" & 16"-18"		14"-19"
Wire Diameter Range	φ1.8-2.8mm		φ1.6-4.0mm
Motor Power	1.5KW		2.2KW
Servo Motor Power	-	1KW	2KW
Weight	700 KGS	720 KGS	1100 KGS
Overall Dimensions	1.95×0.8×1.55M	2.0×0.8×1.75M	2.5×1.2×1.68M

Model	QK-2(L)	QK-3(L)
Designed Capacity	25-29 pcs/min
Hanger Size Range	20"
Wire Diameter Range	φ1.8-3.0mm
Motor Power	1.5KW	1.5KW
Servo Motor Power	-	1KW
Weight	700 KGS	720 KGS
Overall Dimensions	1.95×0.8×1.55M	2.0×0.8×1.75M

Customized hanger shape & size available! Provide your hanger photo, drawing, or sample, and we will adjust the automatic hanger making machine to produce the exact hanger size and shape you require.
