Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production

1
MOQ
US$16,200
가격
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
생산능력: 800~2000
힘: 1.5kW
무게: 1500kg
용접 속도: 1250-2000 PC/분, 800-1800 PC/분
전자 제어 시스템: PLC (신제 XC3-42R-E)
터치 스크린 크기: 10.1"
VF 인버터: XINJE VB5-21P5, 220V, 1.5KW
적용 전원: AC 380V, 50Hz, 3상
용접 전력 공급: DC 490-530V
용접 전류: 1000-2000A(2차측)
정격 출력: 8kw
맥스 파워: 20kW
압축 공기: ≥ 0.4-0.8Mpa
냉각 수압: 0.1-0.2Mpa
치수: 2650x900x2000mm
강조하다:

Fully Automatic Coil Nail Collator

,

1.5KW Power Coil Nail Making Machine

,

PLC Control Nail Collator Machine
기본 정보
원래 장소: 중국 장쑤성
브랜드 이름: DURA
결제 및 배송 조건
제품 설명

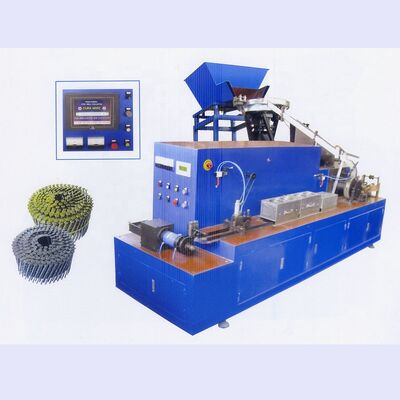

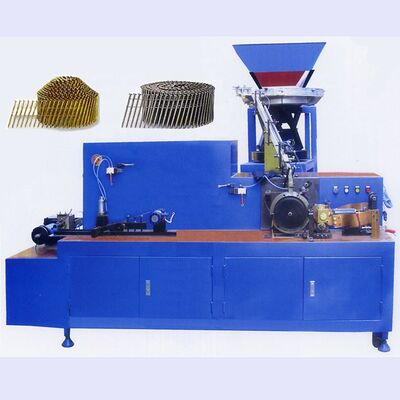

Coil Nail Collator Machine
Advanced automatic welding equipment for efficient coil nail production, featuring our latest 3rd generation technology with continuous improvements based on user feedback and technical expertise.
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 0 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 1
Operation Process
Disordered wire nails or roofing nails are fed into the vibrating feeder, where they align along the spiral passage and travel through a downward groove to the welding wheels. Two copper-plated wires are welded to the nails at a precise 15°-16° angle. The welded nails are then coiled to a fixed length and cut, forming either flat-top or cone-top coil shapes.
An optional rust-proof acrylic resin/lacquer dipping and drying unit can be integrated between welding and coiling processes. Finally, each coil is manually bound with a rubber band.
Technical Specifications - Model CNC-N3
Model CNC-N3 Applicable Nail Types Common wire nails with smooth, annular, twisted shank
Applicable Nail Sizes Ø1.8-2.5mm/25-75mm
Ø2.7-4.0mm/75-100mm		 Capacity 1250-2000 pcs/min
800-1800 pcs/min
Electronic Control System PLC: XINJE XC3-42R-E Touch Screen XINJE, 10.1"
Coil Specifications Angle: 15°-16°
Nails per coil: 200-400
Welding wires: Copper coated steel wire		 VF Inverter XINJE VB5-21P5, 220V, 1.5KW
Applicable Power Supply AC 380V, 50Hz, 3-phase (others available upon request) MCU AT89C52 (ATMEL, USA)
Welding Power Supply DC 490-530V Compressed Air ≥ 0.4-0.8Mpa
Welding Current 1000-2000A (secondary side) Cooling Water Pressure: 0.1-0.2Mpa
Rated Power 8KW Net Weight Approx. 1500kgs
Max Power 20KW Dimensions 2650 x 900 x 2000mm
Technical Specifications - Model CNC-N4
Model CNC-N4 Applicable Nail Types Common wire nails with smooth, annular, twisted (spiral thread) shank
Applicable Nail Sizes Ø1.8-2.5mm/25-75mm
Ø2.7-4.0mm/75-100mm		 Capacity 1250-2000 pcs/min
800-1800 pcs/min
Electronic Control System PLC: XINJE XC3-42R-E Touch Screen XINJE, 10.1"
Coil Specifications Angle: 15°-16°
Nails per coil: 200-400
Welding wires: Copper coated steel wire		 VF Inverter XINJE VB5-21P5, 220V, 1.5KW
Applicable Power Supply AC 380V, 50Hz, 3-phase (others available upon request) HF Spot-Welding Controller GY-2000
Welding Current Max. 100-1000A (secondary side) Compressed Air ≥ 0.4-0.8Mpa
Rated Power 20KVA Cooling Water Pressure: 0.1-0.2Mpa
Max Power 40KVA Net Weight Approx. 1500kgs
Main Motor 0.75KW Dimensions 3000 x 900 x 2000mm
Technical Notes
(1) Many Chinese users prefer 15.5° angle to accommodate finished coil nails to air guns with 15° or 16°, otherwise an extra S.S. Nail Holding Wheel must be ordered separately.
(2) Recommended welding wire specifications for common coil nails: Copper coated welding wires with diameter 0.6-0.8mm, tolerance +0.01/-0.02mm, tensile strength 300-365 Mpa, elongation ≥ 12%. Stainless steel coil nails require stainless steel welding wires.
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 2 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 3 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 4 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 5
Customer Support Services
Pre-Sales Services
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 6 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 7
After-Sales Services
  • Machine installation training
  • Machine operation training
  • Overseas engineer service support
Company Profile
Founded in April 2011, WUXI TRIPOD MACHINERY was established to meet diverse customer demands with optimized service. With extensive export experience and technical expertise, we have successfully supplied products to Southeast Asia, the Middle East, Africa, East Europe and South America. Today we handle both export business with annual turnover exceeding $3 million and import operations.
Our Mission
We strive to be the eyes of purchasers, brain aide of decision-making and hand of inspection on finished products.
Our Philosophy
Effort forms the foundation of ongoing business, while credit creates the essence of trade expansion.
Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 8 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 9 Fully Automatic Coil Nail Collator Machine with 1.5KW Power and PLC Control for Efficient Nail Production 10
